Product Name: Jingxiang Acoustic Pod Series / sizes: S · SL · M · L · XL · XXL

Product Category: Office Pod/Acoustic Pod/Silent Box

1. Product Overview

The Jingxiang series is a family of prefabricated acoustic pods that creates a quiet, private room inside an open environment — without construction work, without dust, and without permanent modification to the building.

Each pod is a complete, self-contained unit: a rigid aluminium frame, thick acoustic composite wall panels, laminated tempered acoustic glazing, an integrated fresh-air system, dimmable LED lighting and built-in charging. It arrives as a finished product rather than a kit of parts, is repositioned on its own castors, and can be moved again when a floor plan changes. No fixed partition, suspended ceiling or building permit is required to put one into service.

Six sizes cover the full working range, from a single-occupant focus pod (S) to a six-person meeting room (XXL), plus the low-profile SL for wall-aligned layouts. All six share the same structural system, acoustic construction and interior services, so a workplace can specify one product family across every privacy need instead of mixing suppliers.

The design intent is straightforward: give people a place where a call, a video meeting or a confidential conversation can happen at full voice, next to colleagues who continue working undisturbed. The pod is engineered as a system — mass-loaded panels, a 45° magnetic perimeter seal, laminated glass and a sound-barrier ventilation path — rather than as a box with insulation added afterwards.

2. Key Features

Structural frame. 6063-T5 aerospace-grade aluminium alloy extrusions on all four sides, average wall thickness above 2.5 mm. The frame carries the panels and the roof load and keeps the pod square over repeated relocation.

45 mm acoustic composite panels. Double-layer acoustic composite steel panels, 45 mm thick, internally laminated with multiple acoustic materials. The exterior face is finished with automotive-grade baked paint for durability and colour consistency.

45° magnetic silent seal.The perimeter sealing strip closes at 45° with magnetic retention, so the door and panel joints pull shut evenly and stay closed. This is the detail that decides whether a pod performs in practice, not only on a drawing.

Double laminated tempered acoustic glass. 5 mm + 1.14PVB + 5 mm symmetrical laminated tempered acoustic glass on the viewing side — visual contact with the outside, safety glass in the door, and acoustic mass in the same element.

Fresh air with a sound barrier. A multi-layer sound-barrier fresh-air system renews the entire cabin volume every 3 minutes. The airflow path is baffled so that ventilation does not become an acoustic leak.

Tunable LED lighting. Central LED lighting adjustable from 3000 K to 6500 K, with smart sensor control — warm light for focus work, neutral daylight for video calls.

Power and data at the desk. USB and charging interfaces are fitted inside as standard; a network interface is available as an option.

Hidden frame, clean interior. The frame is concealed, with no exposed hinges, giving a flush interior surface and a furniture-grade appearance.

Full-coverage acoustic carpet. A custom-made nylon carpet in one piece covers the entire floor, with no seams to lift and good sound absorption underfoot.

Movable on its own castors. Steel castors at the base allow the pod to be pushed into position and re-positioned later, without dismantling the structure.

Low-emission materials.Panel grade E0; the odour-free bonding process complies with EU RoHS requirements.

3. Model Range at a Glance

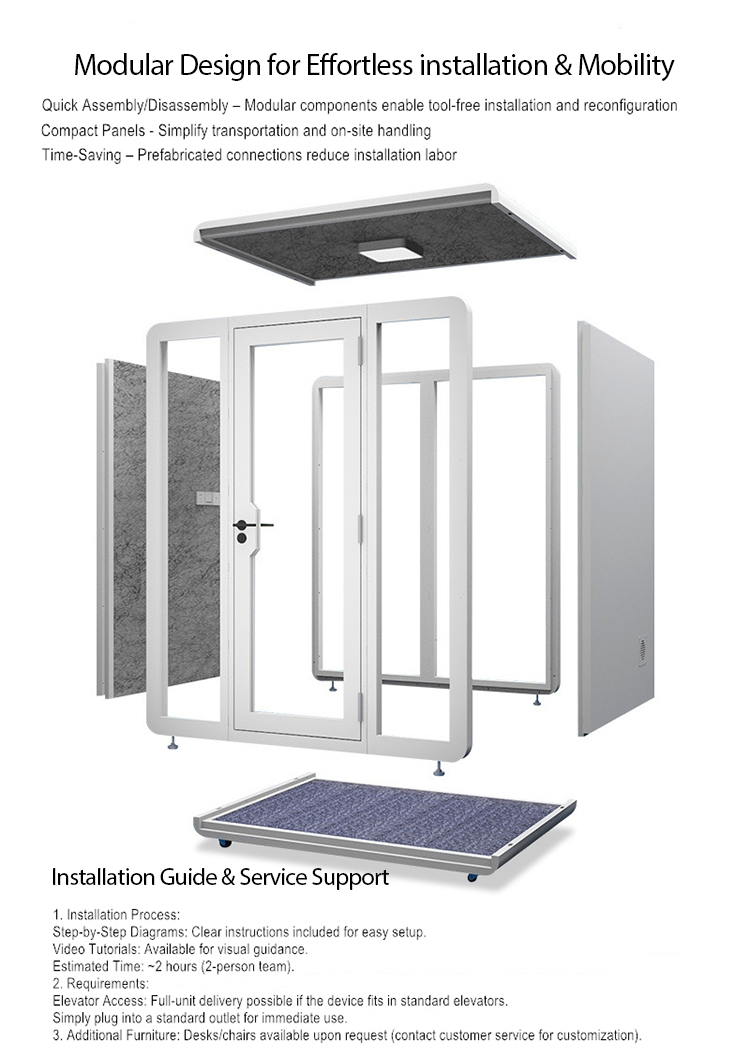

4. Construction & Materials

4.1 Frame

• 6063-T5 aerospace-grade aluminium alloy extrusions on all four sides of the pod

• Average wall thickness above 2.5 mm

• Concealed frame structure — no exposed hinges, flush interior finish

• Self-supporting; the pod stands on its own base and requires no wall fixing

4.2 Wall and roof panels

• 45 mm double-layer acoustic composite steel panel

• Internally laminated with multiple acoustic materials

• Exterior face: automotive-grade baked paint finish

• Panel grade: E0

4.3 Glazing and door

• 5 mm + 1.14PVB + 5 mm symmetrical laminated tempered acoustic glass

• Safety glass throughout, CCC certified

• Door with concealed hinges and door closer

• 45° magnetic silent perimeter seal

4.4 Interior finish

• 12 mm high-density eco-friendly polyester fibre acoustic panel

• Zero formaldehyde emission

• Continuous surface with no exposed fixings

4.5 Floor

• 5 mm eco-friendly nylon carpet, one piece, full coverage

• 45 mm double-sided steel floor panel filled with flame-retardant composite acoustic material

4.6 Sealing

• 45° magnetic silent sealing strip around door and panel joints

• Magnetic retention keeps the seal closed under normal use

4.7 Base and mobility

• Portable support castors at the base of the pod

• Steel castors allow the assembled pod to be moved into position and relocated later

5. Acoustic Performance

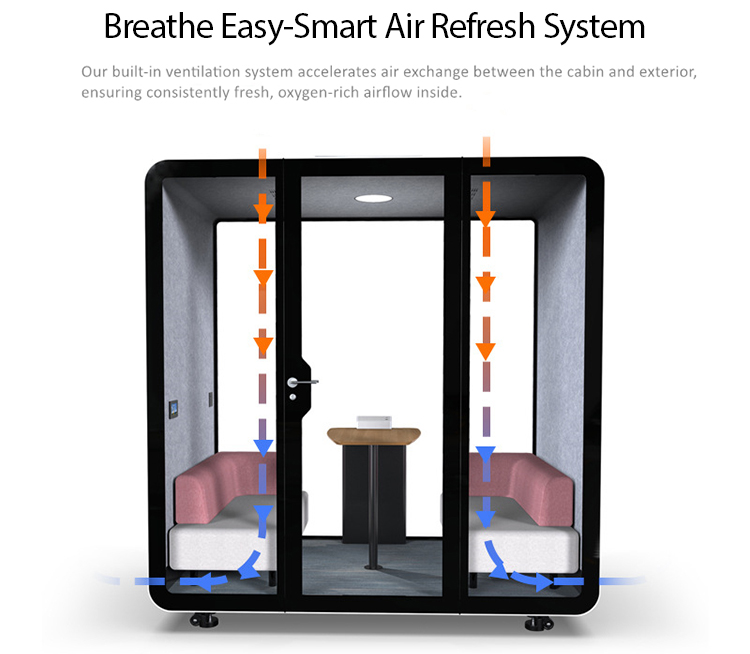

6. Ventilation

• Multi-layer sound-barrier fresh-air system

• Complete renewal of the cabin air every 3 minutes

• The air path is acoustically treated, so ventilation does not create a sound leak

• Continuous operation while the pod is occupied

7. Lighting, Power & Connectivity

8. Environmental Performance & Material Compliance

9. Model-by-Model Specifications

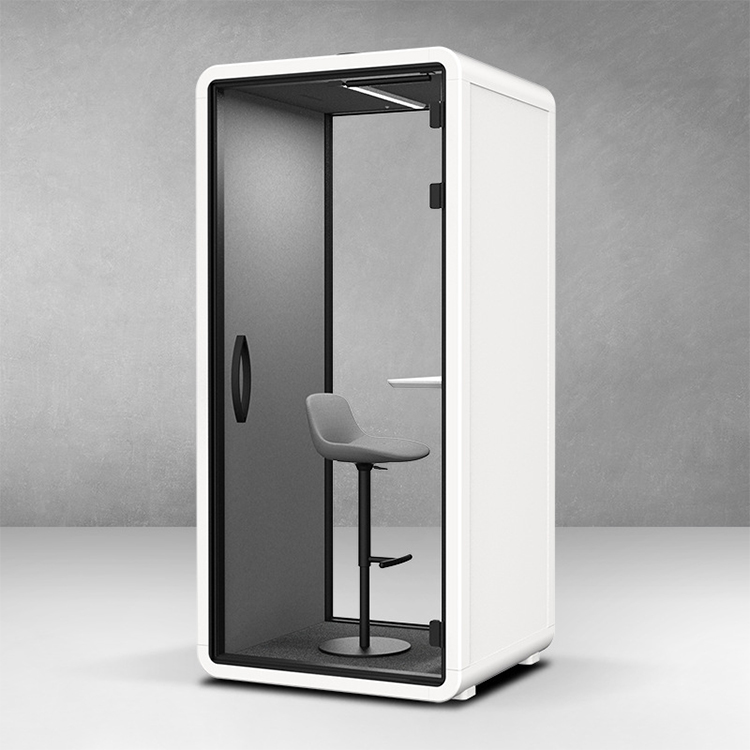

9.1 Jingxiang S — single-occupant pod

• Recommended occupancy: 1 person

• Typical use: focused individual work, phone and video calls, confidential conversations in an open office

• Exterior: 1050 W × 1008 D × 2380 H mm

• Interior: 923 W × 970 D × 2170 H mm

• Footprint: approx. 1.06 m²

• Packaging: 1 package, 2305 × 600 × 1160 mm, 380 kg

• Parameters: EP E0 class · SI 32 ± 5 dB

The smallest pod in the range. It occupies about one square metre of floor and can be placed in a circulation area, at the end of a bench, or in a corner without blocking movement.

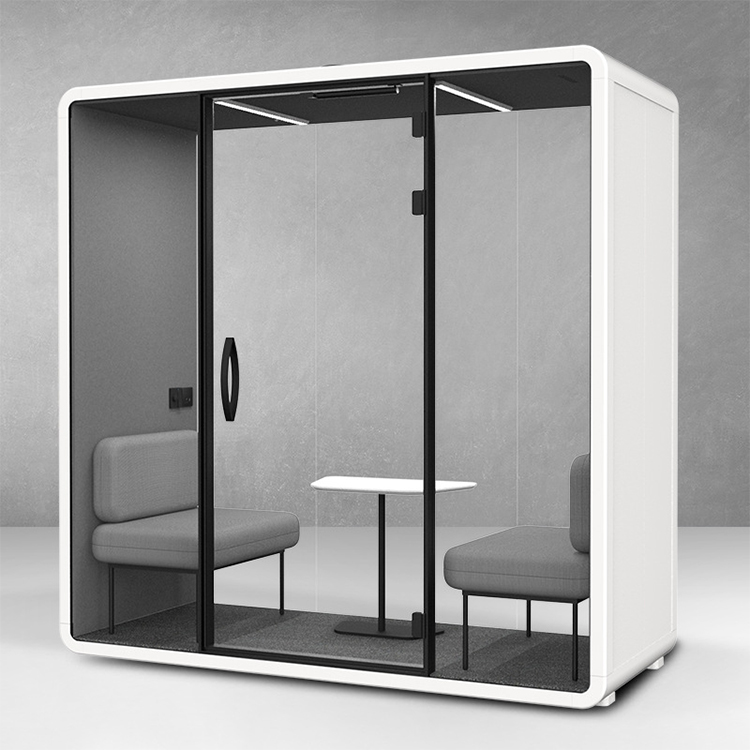

9.2 Jingxiang SL — low-profile wall-aligned pod

• Recommended occupancy: 1–2 persons

• Typical use: wall-side call positions, side-by-side short conversations, narrow floor plates

• Exterior: 2305 W × 920 D × 2310 H mm

• Interior: 2181 W × 880 D × 2233 H mm

• Footprint: approx. 2.12 m²

• Packaging: 1 package, 2300 × 980 × 1280 mm, 764 kg

• Parameters: EP E0 class · SI 32 ± 5 dB

Wide but shallow, and the only model with a reduced height. It sits flat against a wall and leaves the walkway clear — useful where depth is the constraint rather than width.

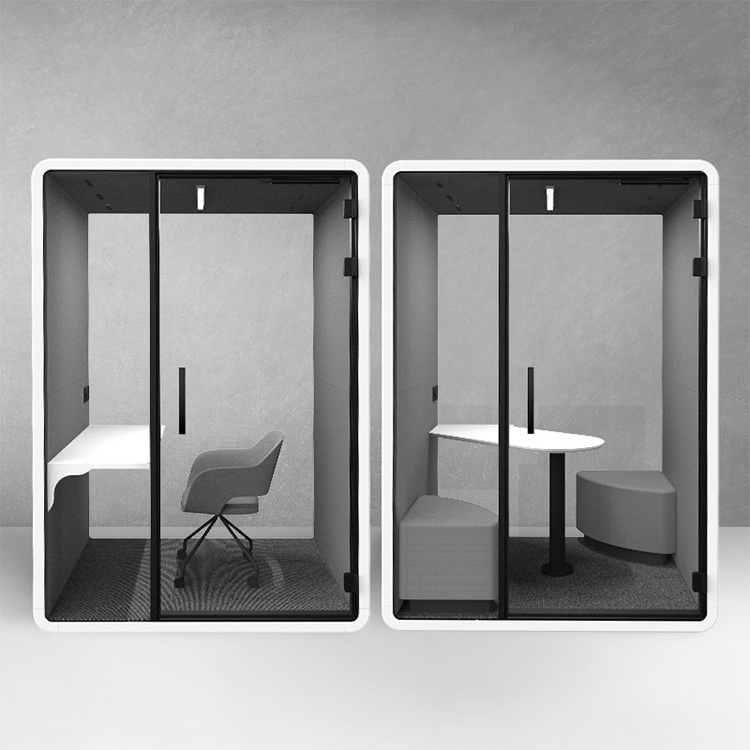

9.3 Jingxiang M — two-person pod

• Recommended occupancy: 2 persons

• Typical use: a personal workstation that also receives a visitor, one-to-one discussions, interviews

• Exterior: 1600 W × 1320 D × 2380 H mm

• Interior: 1476 W × 1280 D × 2170 H mm

• Footprint: approx. 2.11 m²

• Packaging: 1 package, 2300 × 900 × 1260 mm, 660 kg

• Parameters: EP E0 class · SI 32 ± 5 dB

The balanced proportion of the range: enough width for a desk plus a second chair, without the length of the meeting models.

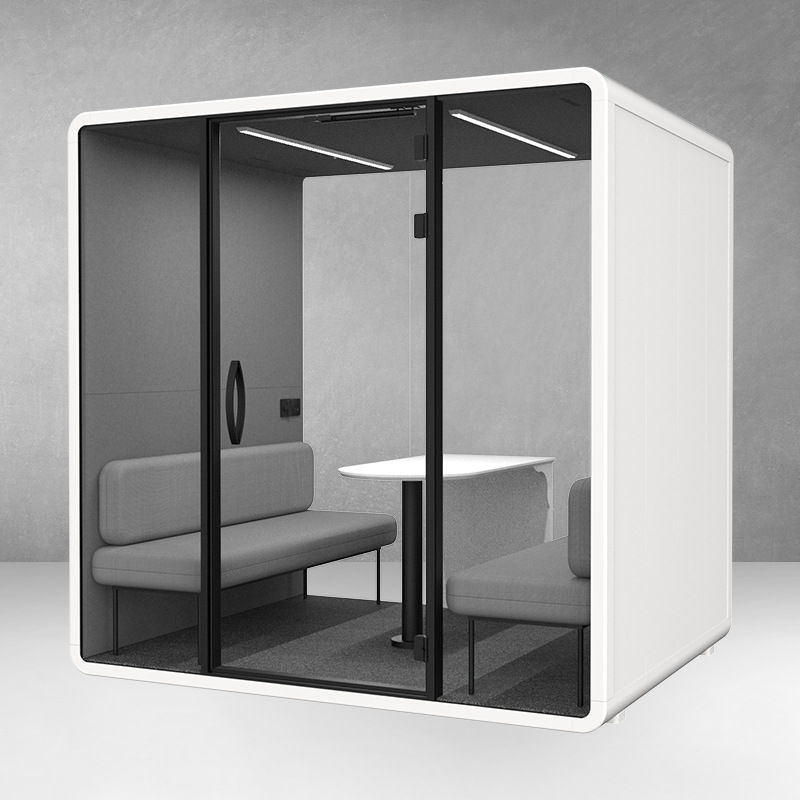

9.4 Jingxiang L — four-person pod

• Recommended occupancy: 4 persons

• Typical use: small team discussions, project stand-ups, client conversations

• Exterior: 2315 W × 1320 D × 2380 H mm

• Interior: 2215 W × 1280 D × 2170 H mm

• Footprint: approx. 3.06 m²

• Packaging: 1 package, 2300 × 900 × 1260 mm, 700 kg

• Parameters: EP E0 class · SI 32 ± 5 dB

Single-package shipping in a 2.3 m long format, which keeps handling simple at site. The 2215 mm internal width takes a four-seat layout along the long axis.

9.5 Jingxiang XL — four-person facing pod

• Recommended occupancy: 4 persons

• Typical use: face-to-face short meetings, small presentations, two-person interviews with an observer

• Exterior: 2305 W × 1710 D × 2380 H mm

• Interior: 2215 W × 1660 D × 2170 H mm

• Footprint: approx. 3.94 m²

• Packaging: 1 package, 2300 × 900 × 1260 mm, 850 kg

• Parameters: EP E0 class · SI 32 ± 5 dB

Extra depth over the L, which allows a facing seating arrangement with a small table between — closer to a meeting room than a booth.

9.6 Jingxiang XXL — six-person meeting pod

• Recommended occupancy: 6 persons

• Typical use: formal meetings, workshops, standing project reviews, video conferences with a group

• Exterior: 2315 W × 2490 D × 2380 H mm

• Interior: 2200 W × 2450 D × 2170 H mm

• Footprint: approx. 5.76 m²

• Packaging: 2 packages — 2530 × 625 × 1260 mm (480 kg) + 2300 × 900 × 1260 mm (685 kg)

• Parameters: EP E0 class · SI 32 ± 5 dB

The largest model, sized for a full meeting table. Its 2450 mm internal depth is what separates it from the four-person models: the room behaves like a small meeting room, not an enlarged booth.

10. Colour Options & Customisation

Exterior and interior finishes are specified separately, so the pod can be matched to the surrounding workplace on the outside and kept light and neutral inside.

11. Packaging & Handling

12. Typical Applications

• Corporate offices and headquarters - focus pods and phone booths inside open-plan floors

• Co-working and serviced offices - private rooms offered as part of a membership

• Hotels and venues - quiet booths in lobbies, business centres and exhibition halls

• Education - individual study, tutoring, examination and counselling rooms

• Healthcare and clinics - private consultation and tele-consultation spaces

• Call centres and customer service floors - acoustic separation between adjacent agents

• Public and transport buildings - libraries, airports and stations, where a quiet call space is otherwise unavailable

FAQ

What's the use of a silent booth?

The STC of Silent Booth is 35(± 5) dB, NRC is 0.25 second.

It is good enough to protect the speech privacy, and create a clear, quiet and comfortable sound environment inside.

What are the advantages over other silent booths?

1)The product is 100% eco-friendly with zero formaldehyde emission.

2)lt has NO wood material and NO glue. NO screw need to be used inthe assembly.

3)Silent Booth is fireproof and waterproof, with carbon plastic, aluminum, and insulation tempered glass as its main materials.

4)lt is a modular product done with solidworks.  All standard parts are connected with tension lock.

Is it difficult to assemble?

Normally it takes 2-3 hours to complete a Silent Booth. At least 2 people is required.

It is suggested to have 3 people together to assemble the larger booths.

How long will it be delivered?

Normally for orders less than 20 units, the lead time is around 20 days.

For bulk orders, production time will be updated according to exact quantity.

What certificates are available for silent booth electrical accessories?

Electronic appliances in Silent Booth include power cable, socket, lighting and ventilation fan.

All these we have options available for requirement of certificates in most countries and regions, including CE/UL/FCC, etc.

What is the standard for electrical sockets?

Five types available: France standard, UK standard, Germany standard, United States standard, French standard and Chinese standard.

How do I become a soundbox silent booth distributor?

We have distributor in Hongkong, UAE, UK, Singapore and Australia.

And we welcome if you want to be our distributor! The period of validity is one year. We can discuss further if you have interest.

Can it be customized?

1) Without logo, neutral package: YES. MOQ 1pc.

2)Customized your logo(silk print on glass): YES, MOQ of each model 20pcs.

3)More colors: YES, MOQ 10pcs.

For any customization, we suggest not to change the product structure(specification of wall panels, glasses etc.), because the silent Booth is amodular product, any change of the structure will cost same as developing a new product.

What is the Capacity of the ventilation fan?

The fan will blowing-in fresh air about 120 cubic meter/per hour(20 cubic meter/per minute), with a speed of 700 rpm.
